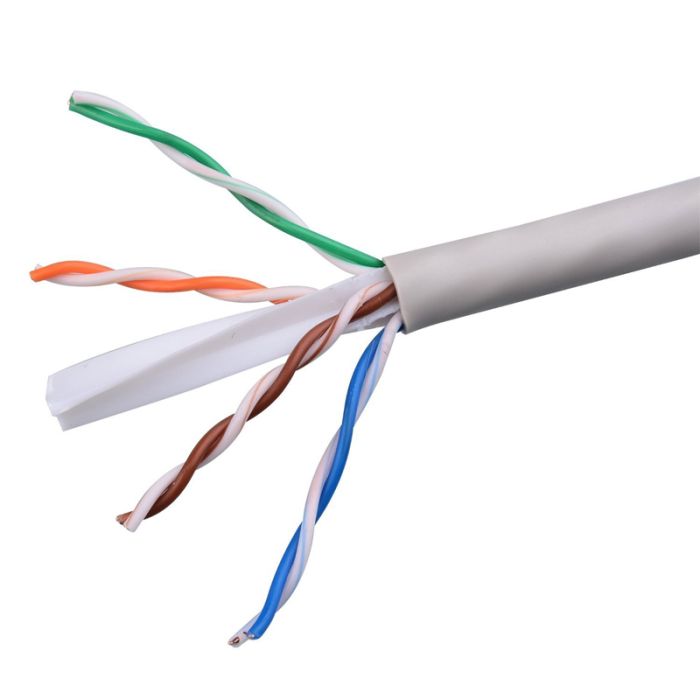

D-Link NCB-C6UGRYR-305 Cat6 UTP 23AWG Cable Rolls
$0.00
In stock
SKU
GCTL-Cat-6D
4 Pairs Unshielded Twisted Pair (UTP) Cable
Conductor Metal: Solid Bare Copper with 23 AWG
Brand: D-Link
Model: NCB-C6UGRYR-305
4 Pairs Unshielded Twisted Pair (UTP) Cable
Conductor Metal: Solid Bare Copper with 23 AWG
Color Code: Gray
Jacket Material: PVC UL94V-0
PE Central Cross separator
Mutual Capacitance: 5.6nF/100m nominal
Characteristic Impedance: 100±15%
Nominal Velocity of Propagation: 69%
Conductor Resistance: < 9.38/100m
Mutual Capacitance: < 5.6nF/100m
Resistance Unbalance: 5% Max
Capacitance Unbalance: 330pF/100m
Delay Skew: < 45nS
Conductor Diameter : 0.520mm Nominal
Insulation Diameter: 0.940mm Nominal
Insulation Material: HD-PE
Cable Diameter: 5.7mm
